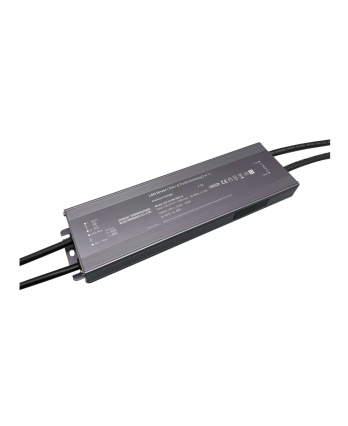

150W Constant Voltage DALI-2 DT8 CCT&Push-Dim LED Driver
Enquiry Item
150W Constant Voltage DALI-2 DT8 CCT&Push-Dim LED Driver
·DiiA member & certificated
·Built-in active PFC function
·Protections: short circuit/over current/over temperature
·Strong compatibility, flicker-free dimming
·Output constant current for double color DT8 CCT
·Certificate: DALI-2、ENEC、 CB Pending、 CE、RoHS
· IP65
Out Of Stock!
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
| Model | KV-12150-DP2-2C-A | KV-24150-DP2-2C-A | KV-36150-DP2-2C-A | KV-48150-DP2-2C-A |
| Input voltage | 200-240V | |||
| Frequency | 47-63 Hz | |||
| Output voltage | 12V | 24V | 36V | 48V |
| Output current | 25A | 12.5A | 8.34A | 6.25A |
| Dimming way | DALI & Push 2 in1 | |||
| Rated power | 150W | |||
| Dimensions (L*W*D) | 301*78*25.1mmmm | |||
| N.W./CTN/ G.W. | 1.15kg | |||
