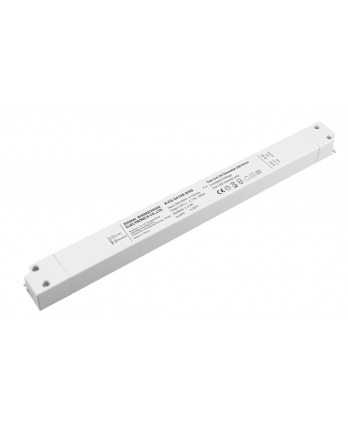

150W Constant Voltage Triac&0/1-10V Dimmable LED driver IP20
Enquiry Item
150W Constant Voltage Triac&0/1-10V Dimmable LED driver
·High power factor
·PWM output
·Full dimming range: 0-100%
·10% minimum load
·Flicker-free
·Continous, smooth
·Certificate: TUV-CE,CB, SAA,RoHS
· IP20
Out Of Stock!
This product is temporarily out of stock. You may opt-in our waiting list and we'll notify you once the product is restocked.
| Model | KVG-12150-DHS | KVG-24150-DHS |
| Input voltage | 200-240V | |
| Frequency | 47-63 Hz | |
| Output voltage | 12V | 24V |
| Output current | 12.5A | 6.25A |
| Dimming way | Triac&0/1-10V | |
| Rated power | 150W | |
| Dimensions (L*W*D) | 368*30*22.5mm | |
| N.W./CTN/ G.W. | 0.45kg | |
